- Model Number: 92
- Brand Name: GauTone
- Origin: Mainland China
- Certification: CE
- Smart home platform: other
- Feature: PIR motion sensor
- Working Voltage: 3V AAA*2 Alkaline Battery
- Working Current: <=25mA

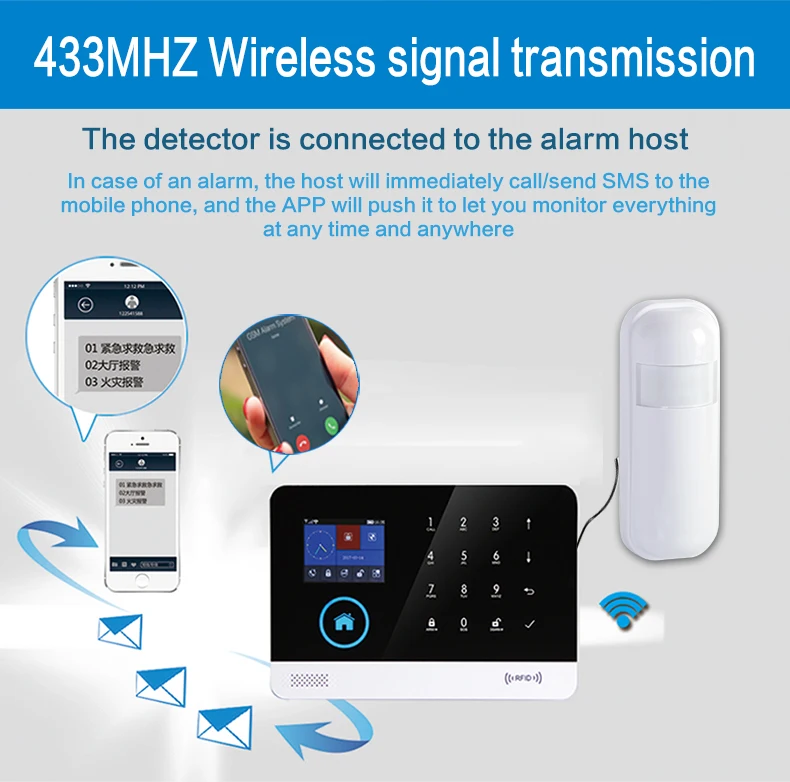

- Emission Frequency: 433MHz
- Emission Distance: >= 80m (open space)
- Detecting Distance: 8m-12m
- Installation Height: 1.8-2.2m
- Size: 40*105*26mm

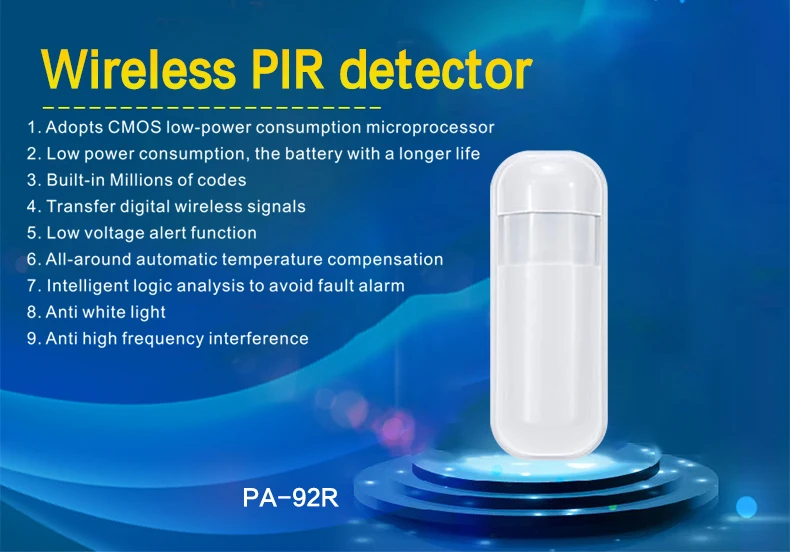

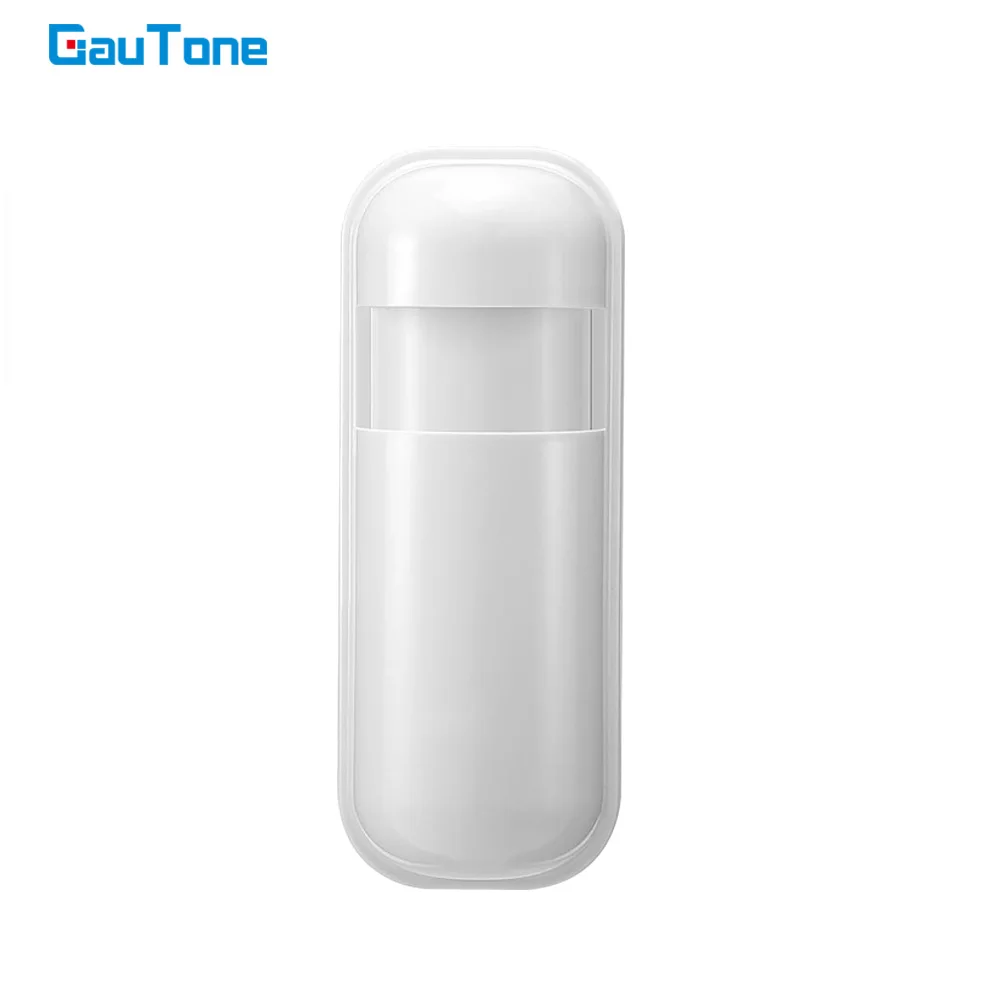

GauTone PIR Motion Sensor Detector 433MHz eV1527 for Home Alarm System Wireless Infrared Motion Detector

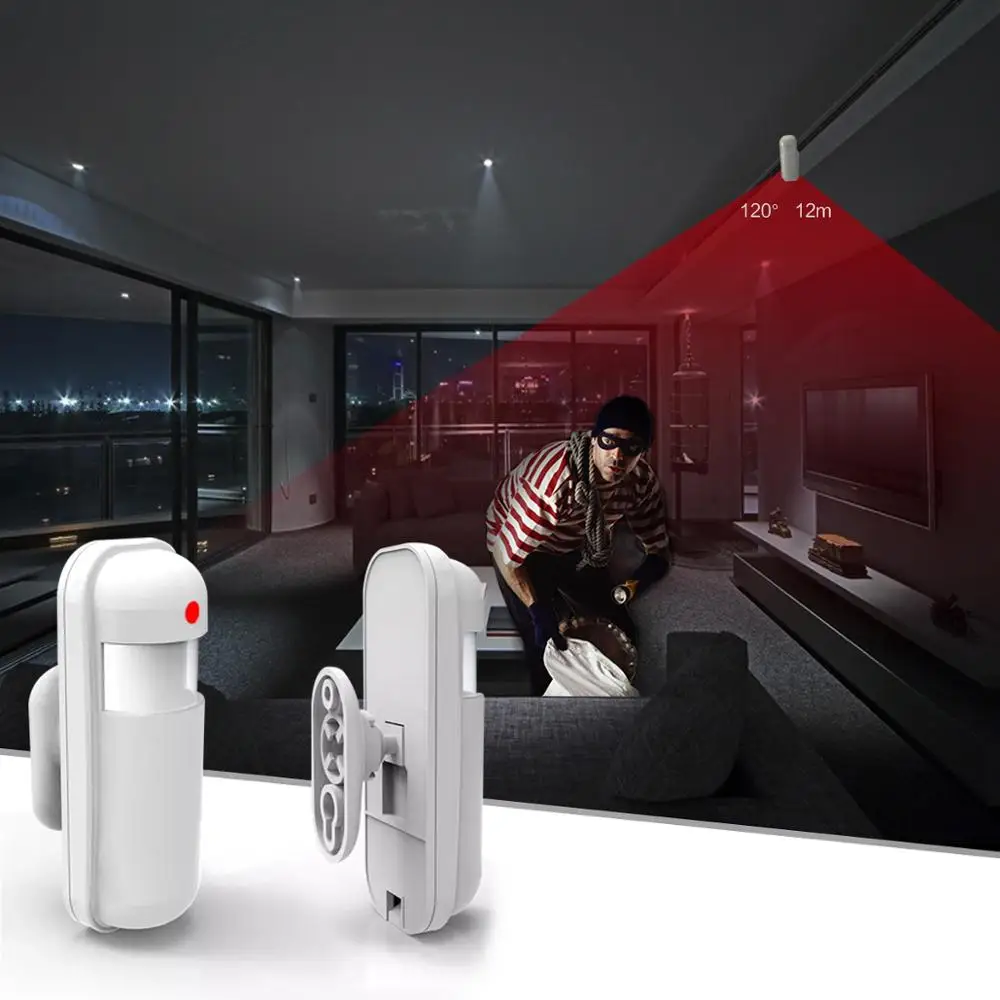

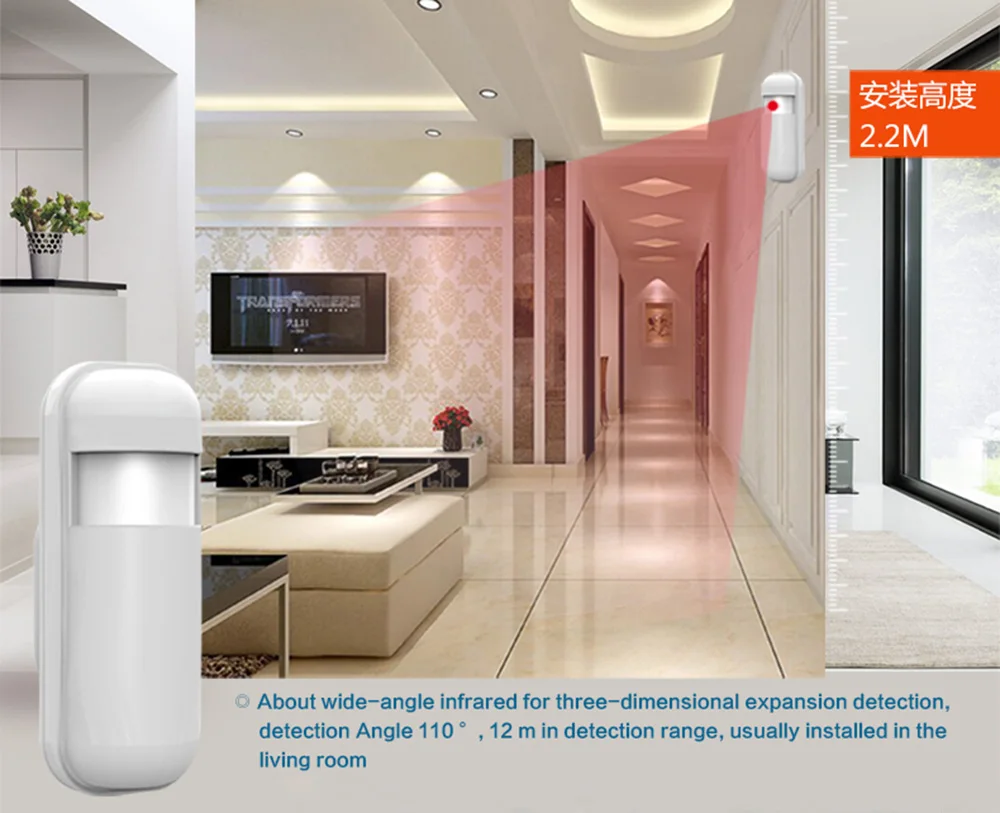

Installation height is about 2.2 meters above ground and the optimized detection angle for most motion sensor is 90 degree. The sensor should face the detected area with this consideration for best coverage. It is advised to install with the face of motion sensor perpendicular to the most probable moving detection of people for the highest effective detection.Before use, make sure the power switch of PIR motion sensors is at the ON position.
